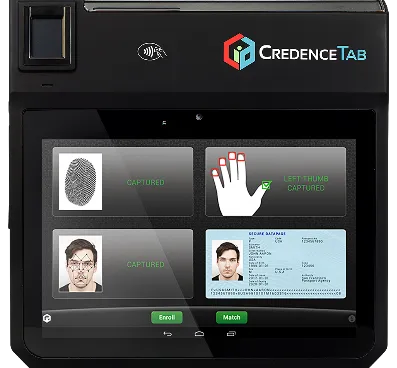

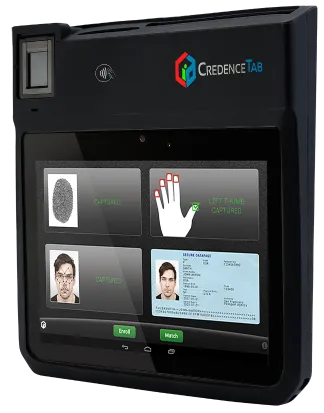

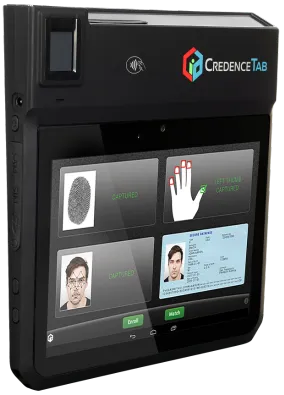

CredenceTAB™Biometric tablet for registration and authentication
Secure Android 9 OS
4G, Wi-Fi, Bluetooth, GPS
FAP 30 Fingerprint Sensor
Non-Swipe ePassport ReaderExplore The Features
Biometrics at its Best

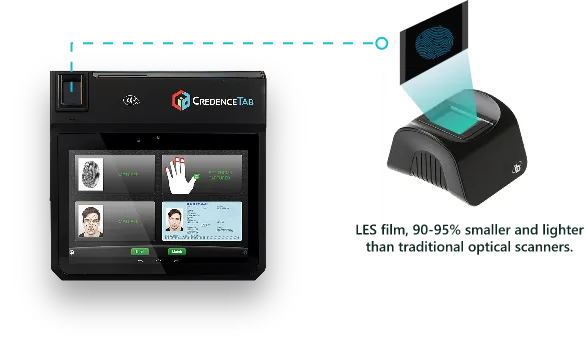

High-Resolution Live Fingerprint Scans
A Multi-Layer Composite Containing Luminescent Particles
Advantages of Light Emitting Sensors (LES)
CredenceTAB™ features an Integrated Biometrics Columbo fingerprint sensor, consisting of a patented electroluminescent polymer LES film. When a finger is placed on the LES film, the fingerprint ridges complete a low-level electric circuit. This causes the luminescent particles in the film to emit light and capture high-resolution fingerprint images.
Following are some of the advantages offered by LES sensors integrated into CredenceTAB™:
Light-emitting sensors require far less power than prism-based biometric fingerprint systems.
They deliver live fingerprint scans rapidly with built-in testing to eliminate spoofing.
They remain unaffected by oils, dirt, heat, or cold from previous fingerprints.
Credence ID’s fully featured C-SDK analyzes the quality of captured fingerprints to improve the fingerprint matching algorithm’s performance.

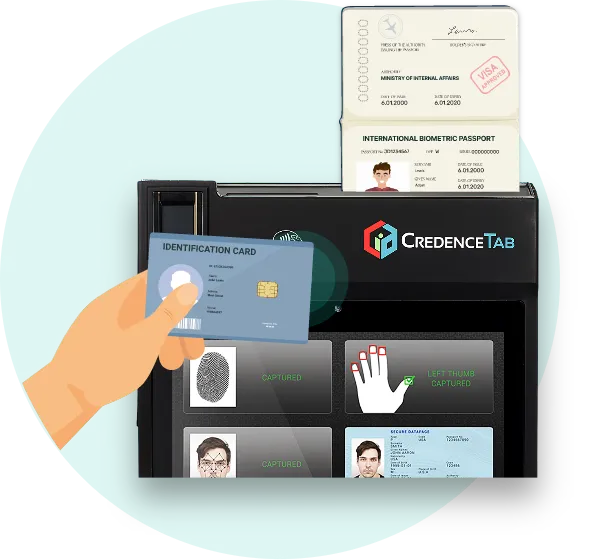

Smartcard and ePassport reading combined!
CredenceTAB™ integrates a dedicated ePassport reader and a high-speed dual-interface smartcard reader enabling secure readouts for user identification and authentication. With our comprehensive, Android-based C-SDK, you can send and receive RAW APDU or read ICAO documents directly. The firmware for these readers can be field-upgraded through over-the-air software updates.
CredenceTAB™ is capable of reading virtually any ePassport in the world. The ePassport reader can read the following types of documents with MRZ:
- 1 line: IDL, CAN
- 2 lines: ID2 cards, ePP
- 3 lines: eID
- Font Type OCR B
CredenceTAB™ accepts contact and 13.56MHz contactless smartcards through an integrated interface wherein the reader recognizes the type of smartcard to activate the corresponding channel.
The contactless interface supports fast contactless transmissions up to 848 Kbps in ISO 14443 A/B mode. It meets the ISO standards listed below:
Read/write mode supporting ISO/IEC 14443A/B
Read/write mode supporting All MIFARE products:
Ultralight, 1K, 4K, Plus, DESFire EV1
The contact interface is capable of 200,000 insertions
System
Freescale, i.MX6(1GHz), ARM Cortex-A9, Quad-core processor
Display & Resolution
10-inch diagonal, HD, sunlight-readable, multi-touch display with 800x1280 pixel resolution
Operating System
Secure Android 9 OS
Storage
16GB onboard storage (expandable up to 64GB) and 2GB RAM
Worldwide GSM Cellular
LTE (Asia, Europe, South America, Africa): B1 (2100)/B2 (1900)/B3 (1800)/B7 (2600)/B8 (900)/B20 (800DD)/B5 (850)
LTE (North America): B2 (1900)/B4 (AWS)/B17 (700bc)/B5 (850)
3G: HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8
2G: EDGE/GPRS/GSM quad-band 850/900/1800/1900 MHz
Connectivity
Bluetooth: 4.0
Wi Fi: 802.11 b/g/n 2.4GHz
GPS
Standalone multi-GNSS (GPS, GLONASS, Galileo, QZSS and SBAS) engine with active antenna
Battery & Charging
Integrated 8,000mAh battery + 3 Amp fast charger included
Management
Integrated device management software - CredenceCONNECT™
SDK
Build your own app using the C-SDK or customize pre-existing apps
Certifications
FCC, CE, PTCRB, IP-54
One Platform, Many Applications
Government Sector
- Registration of citizens
- Government benefit delivery
- Unemployment claims and pension distributions
- Polling applications for elections
Healthcare
- Government and private hospitals
- HIPAA compliance
Transaction Security
- Pairing identity and location in real-time.
- Safe end-to-end transactions
Time and Attendance
- Government offices
- Factories
- Travel and transit
