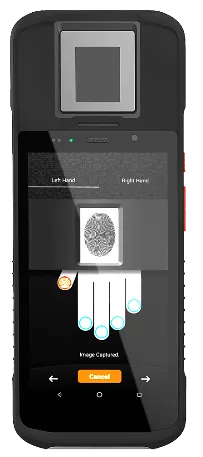

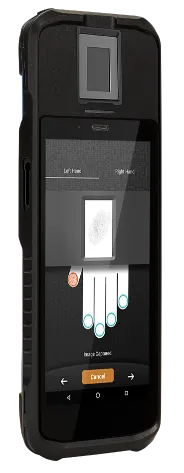

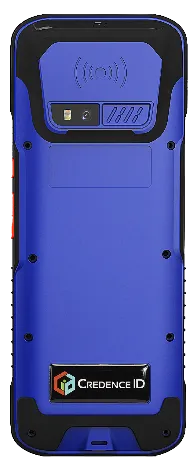

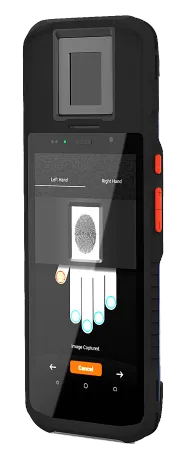

Credence-3™A proven biometric enrollment and verification solution
Secure Android 11 OS
4G, Wi-Fi, Bluetooth, GPS
FAP 30 Fingerprint Sensor
6400mAh BatteryExplore The Features
Biometrics at its Best
FAP 30, FAP 20, FAP 10,
Number of Fingerprint Features
FAP 30
FAP 20
FAP 10
Why does fingerprint scanner size matter?
Minutiae-based matching and pattern matching are the two broad categories of fingerprint matching techniques. The accuracy of both methods is heavily dependent on the number of fingerprint features captured by the sensor. A larger fingerprint scanner captures more features, producing better fingerprint images.
The Federal Bureau of Investigation (FBI) categorizes single finger scanners into three categories based on the capture area - FAP 30, FAP 20, and FAP 10.
According to a large-scale study conducted by NIST IR 7950, FAP 30 scanners exhibit huge improvements in matching accuracy.
Credence-3™ integrates a FAP 30 fingerprint scanner having the largest fingerprint capture area of 0.8 x 1.0 inches. This area is roughly 1.5 times that of a FAP 20 scanner and twice that of a FAP 10 scanner.
13 MP Camera
The Credence-3™ comes with an upgraded 13MP camera for better quality face biometric capture along with high resolution document scanning capabilities. This high resolution is one of the best among its class and enables improved biometric matching accuracy and OCR capabilities from scanned documents.
High quality face capture
Document capture
Barcode decoding
Fast contact and contactless smartcard reading
Credence-3™ features a dual-interface smartcard reader that can automatically recognize contact and contactless smartcards in its proximity. This dual-interface reader then activates the corresponding channel for rapid smartcard reading. With our comprehensive Android-based C-SDK, you can access various high-speed smartcard applications such as National ID programs, government benefit delivery, medical insurance claims, and others.
Credence-3™ can virtually read any contact smartcard and 13.56MHz contactless card.
The contactless interface supports fast contactless transmissions up to 848 Kbps in ISO 14443 A/B mode.
The contact interface can handle up to 200,000 insertions
With our Android-based C-SDK, you can send direct APDU to any smartcard. It also supports rapid card reading with extended ADPUs that are capable of exchanging large data blocks. Most present-day mobile phones lack this support.
High Performance computational system
MediaTek Helio A22 MT6761 SoC Quad Core A53 @2.0GHz
OPEN yet Secure Operating System and Multi-Application Architecture
Google Certified, GMS - Approved AndroidTM 11 Operating System ,Java SDK for biometric and credential (SmartCard) functionality Over-The-Air (OTA) updates for OS and SDK
High-Speed and Secure Memory
Onboard storage: 16GB eMMC
External SD Card slot: up to 128 GB SD Card (purchased separately) supported
RAM: 4GB LPDDR4
Multiple Connectivity
Wi-Fi: 8.11a/b/g/n/ac 2.4 + 5GHz
Bluetooth: 5.0 BR/EDR/LE (Compatible with Bluetooth 1.x, 2.x, 3.x & 4.0)
2G:GSM850 GSM900 DCS1800 PCS1900
3G - WCDMA:B1/2100; B2/1900; B5/850; B8/900
3G - TD/SCDMA:B34/B39
LTE:
- USA: B2, B4, B5, B13, B17
- EU/EMEA:: B1, B3, B20
- Africa/Southeast Asia:B1, B2, B5, B8, B19.
Dual SIM
GPS:Standalone multi-GNSS (GPS, GLONASS and Galileo) engine with active antenna
Touchscreen Display
Size: : 5.5-inch diagonal
Resolution:B 720x1280 Pixels
Type:Capacitive multi-touch panel
Integrated FBI PIV Certified FAP 30 Single-Finger Scanner
Type: : LES (Light Emitting Sensor Technology)
Image Capture Size:0.8 x 1.0 inch
DPI:min 500dpi
Classification: FAP 30 Sensor
Certification: PIV 071006, FIPS 201, FAP 30 / Certified to Mobile ID Requirements
Contact and Contactless Smart Card Reader
Contactless Interface:
Read/write mode supporting ISO/IEC 14443A/B
MIFARE
Read/write mode supporting MIFARE
Contact Interface:
Acceptor: Friction
Insert/remove cycles: 100,000
Integrated Camera
Resolution: 13 Megapixel
Autofocus: Continuous focus and Touch-to-focus
Flash: LED
Easy to Expand
USB-C port with USB-On-The-Go (USB-OTG) support.Fast Charge and Full Day Battery Life
6,400 mAh Li-Ion battery (largest in its class) Fast charging with Certified worldwide fast charger includedEnvironmental Protection
IP Rating: IP65
Shock resistance:MIL-STD-810H compliant
Dimensions
206 mm X 86 mm X 20 mm, 354 grams
One Platform, Many Applications
Government Sector
- Law enforcement
- Registration of voters
Healthcare
- Distribution of medicines
- Medical insurance claims and processing
Transaction Security
- Identity and location pairing
- Safe end-to-end transactions.
Time and Attendance
- Traveler identification
- Offices and workplaces
