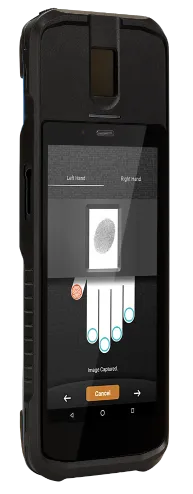

CredenceECO™
Reliable biometric verification device

CredenceECO™ is a next generation biometric and credential reading identity platform. It features a 2.0GHz quad-core Single Board Computer SBC with 4GBRAM/16GB- eMMC and a strong mechanical enclosure. It also integrates a 500 DPI fingerprint scanner, a 5 or 13 MP camera with LED illumination and a dual interface contact/contactless smartcard reader. This mobile biometric reader is easy to carry and has the best-in-class battery life. It is designed and engineered in California, USA.

Android 11 - operating system for CredenceECO-Identifier

Secure Android 11 OS (GMS Approved)

4G, Wi-Fi, Bluetooth, GPS

FAP 20 Fingerprint Sensor

6Battery symbol for CredenceECO-Identifier

6400mAh Battery

Explore The Features

Biometrics at its Best

Top-Notch Components for Excellent Results

High Matching Accuracy Under Extreme Weather Conditions

High-Contrast, Distortion-Free Fingerprint Images

Why is thermal capacitive technology preferred over capacitive silicon and optical technologies?

CredenceECO™ integrates an active thermal fingerprint sensor manufactured using LTPS technology. Most modern-day displays integrated into a broad spectrum of smart devices utilize this technology. Fingerprint sensors manufactured using this technology are highly flexible and deliver optimum performance under extreme weather conditions. Thus, they are preferred over capacitive silicon and optical fingerprint sensors in high-security applications.

These sensors offer the following advantages:

High-contrast, distortion-free fingerprint images
One-touch enrollment and verification
Minimal false rejection and false acceptance rates
A high level of security and convenience

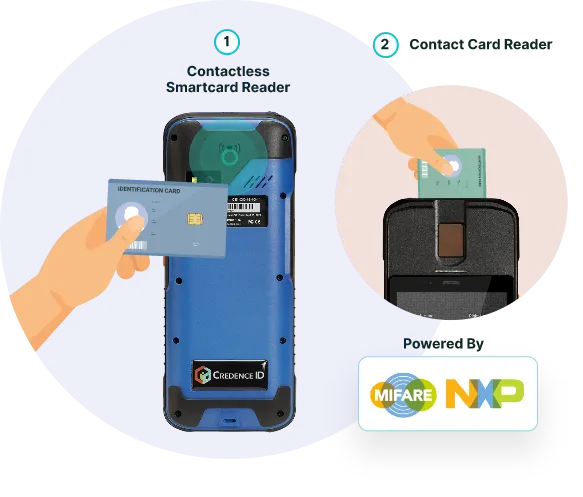

Fast contact and contactless smartcard reading

CredenceECO™ features a dual-interface smartcard reader that can automatically recognize contact and contactless smartcards in its proximity. This dual-interface reader then activates the corresponding channel for rapid smartcard reading. With our comprehensive Android-based C-SDK, you can access various high-speed smartcard applications such as National ID programs, government benefit delivery, medical insurance claims, and others.

CredenceECO™ can virtually read any contact smartcard and 13.56MHz contactless card.
The contactless interface supports fast contactless transmissions up to 848 Kbps in ISO 14443 A/B mode.
The contact interface can handle up to 200,000 insertions.
With our Android-based C-SDK, you can send direct APDU to any smartcard. It also supports rapid card reading with extended ADPUs that are capable of exchanging large data blocks. Most present-day mobile phones lack this support.

High Performance computational system
MediaTek Helio A22 MT6761 SoC Quad Core A53 @2.0GHz
OPEN yet Secure Operating System and Multi-Application Architecture
Google Certified, GMS - Approved Android 11 Operating System, Java SDK for biometric and credential (SmartCard) functionality Over-The-Air (OTA) updates for OS and SDK
High-Speed and Secure Memory
Onboard storage: 16GB eMMC
External SD Card slot: up to 128 GB SD Card (purchased separately) supported
RAM: 4GB LPDDR4
Multiple Connectivity
Wi-Fi: 8.11a/b/g/n/ac 2.4 + 5GHz
Bluetooth: 5.0 BR/EDR/LE (Compatible with Bluetooth 1.x, 2.x, 3.x & 4.0)
2G:GSM850 GSM900 DCS1800 PCS1900
3G - WCDMA:B1/2100;B2/1900;B5/850;B8/900
3G - TD/SCDMA:B34/B39
LTE:
- USA: B2, B4, B5, B13, B17
- EU/EMEA:: B1, B3, B20
- Africa/Southeast Asia:B1, B2, B5, B8, B19.
Dual SIM
GPS:Standalone multi-GNSS (GPS, GLONASS and Galileo) engine with active antenna
Touchscreen Display
Size: : 5.5-inch diagonal
Resolution:B 720x1280 Pixels
Type:Capacitive multi-touch panel
Integrated FAP 20 FBI and FIPS 201 PIV certified active thermal fingerprint sensor
Type: : Thermal-Capacitive
Image Capture Size:0.8 x 0.6 inch
DPI:min 500dpi
Classification: FAP 20
Certification: FBI and FIPS 201 PIV
Contact and Contactless Smart Card Reader
Contactless Interface:
Read/write mode supporting ISO/IEC 14443A/B
MIFARE
Read/write mode supporting MIFARE
Contact Interface:
Acceptor: Friction
Insert/remove cycles: 100,000
Integrated Camera
Resolution: 5 Megapixel (up to 13 Megapixel optional upgrade)
Autofocus: Continuous focus and Touch-to-focus
Flash: LED
Easy to Expand
USB-C port with USB-On-The-Go(USB-OTG) Support
Fast Charge and Full Day Battery Life
6,400 mAh Li-Ion battery (largest in its class)
Fast charging with Certified worldwide fast charger included
Environmental Protection
IP Rating: 5 IP65
Shock resistance:MIL-STD-810H compliant
Operating conditions
Tempature: -20°C to 60°C
Humidity: 5% < RH < 95% (non- condensing)
Dimensions
206 mm X 86 mm X 20 mm, 354 grams
Certificates
MOSIP, SOTI, GMS, FCC, CE

Biometric Fingerprint Sensor
Type: Thermal Capacitive
Image Capture Size: 0.8 x 0.6 inch
DPI: min 500 DPI
Classification: FAP 20
Sensor Certification: FBI and FIPS-201 PIV
Integrated Rear Camera
Resolution: 13MP or 5MP
Autofocus: Continuous focus and touch-to-focus
Flash: LED
Integrated Contactless and Contact Smartcard Reader
Contactless Interface:
Read/write mode supporting ISO/IEC 14443A/B MIFARE
Read/write mode supporting MIFARE
Contact Interface:
Acceptor: Friction
Insert/remove cycles: 100,000
Standards supported: ISO 7816 T=0, T=1

One Platform, Many Applications

With CredenceECO™, you can build and deploy customized biometric solutions for desired objectives, workflows, environments, and use cases with ease. This makes it highly suitable for a broad spectrum of small- and -large-scale biometric verification applications.
