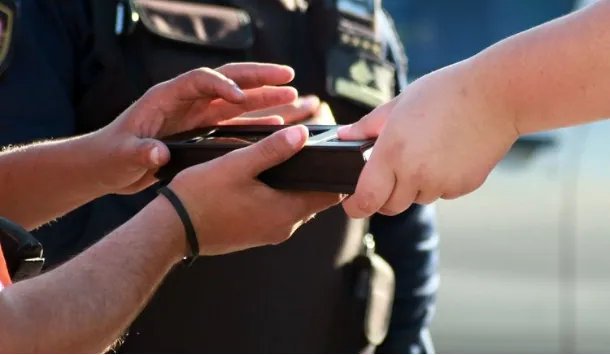

CredenceTWO-R™A rugged handheld biometric device
Secure Android 9 OS
4G, Wi-Fi, Bluetooth, GPS
FAP 30 Fingerprint Sensor
6400mAh BatteryExplore The Features
Biometrics at its Best
FAP 30, FAP 20, FAP 10,
Number of Fingerprint Features
FAP 30
FAP 20
FAP 10
Why does fingerprint scanner size matter?
Minutiae-based matching and pattern matching are the two broad categories of fingerprint matching techniques. The accuracy of both methods is heavily dependent on the number of fingerprint features captured by the sensor. A larger fingerprint scanner captures more features, producing better fingerprint images.
The Federal Bureau of Investigation (FBI) has classified single finger scanners into three categories based on the capture area - FAP 30, FAP 20, and FAP 10.
According to a large-scale study conducted by NIST IR 7950, FAP 30 scanners exhibit huge improvements in matching accuracy.
CredenceTWO-R™ integrates a FAP 30 fingerprint scanner having the largest fingerprint capture area of 0.8 x 1.0 inches. This area is roughly 1.5 times that of a FAP 20 scanner and twice that of a FAP 10 scanner
Fast contact and contactless smartcard reading
CredenceTWO-R™ features a dual-interface smartcard reader that can automatically recognize contact and contactless smartcards in its proximity. This dual-interface reader then activates the corresponding channel for rapid smartcard reading. With our comprehensive Android-based C-SDK, you can access various high-speed smartcard applications such as National ID programs, government benefit delivery, medical insurance claims, and others.
CredenceTWO-R™ can virtually read any contact smartcard and 13.56MHz contactless card.
The contactless interface supports fast contactless transmissions up to 848 Kbps in ISO 14443 A/B mode.
The contact interface can handle up to 200,000 insertions.
With our Android-based C-SDK, you can send direct APDU to any smartcard. It also supports rapid card reading with extended ADPUs that are capable of exchanging large data blocks. Most present-day mobile phones lack this support.
System
Freescale, i.MX6 (1GHz), ARM Cortex-A9, dual-core processor
Display & Resolution
5-inch diagonal, HD, sunlight-readable, multi-touch display with 720x1280 pixel resolution
Operating System
Secure Android 9 OS
Storage
8GB onboard storage (expandable up to 64GB) and 2GB RAM
Worldwide GSM Cellular
Upgrade to 4G/LTE for AT&T or Verizon available in North America
Technology Supported: HSPA, EDGE, GSM, GPRS
Frequency Bands: B1, B2, B5, B6, B8, B19, 850/900/1800/1900 MHz
Connectivity
Bluetooth: 4.1
Wi Fi: 8.11a/b/g/n/ac 2.4 + 5GHz
GPS
Dedicated multi-GNSS (GPS, GLONASS, Galileo, QZSS, and SBAS) engine with active antenna
Battery & Charging
Integrated 6,400mAh battery + 3 Amp fast charger included
Management
Integrated device management software - CredenceCONNECT™
SDK
Build your own app or customize pre-existing apps using the C-SDK
Certifications
FCC, CE, PTCRB, IP-54

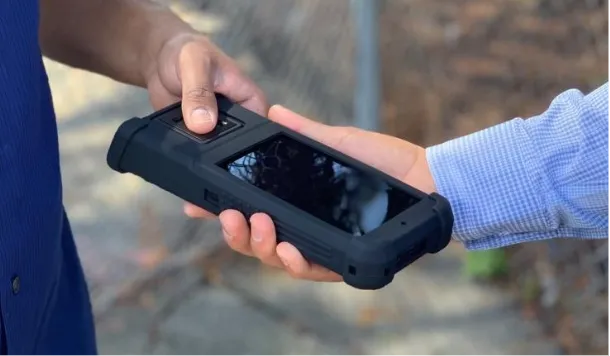

One Platform, Many Applications
Government Sector
- Law enforcement
- Registration of voters
Healthcare
- Distribution of medicines
- Medical insurance claims and processing.
Transaction Security
- Identity and location pairing
- Safe end-to-end transactions
Time and Attendance
- Schools and colleges
- Industries
- Airports
